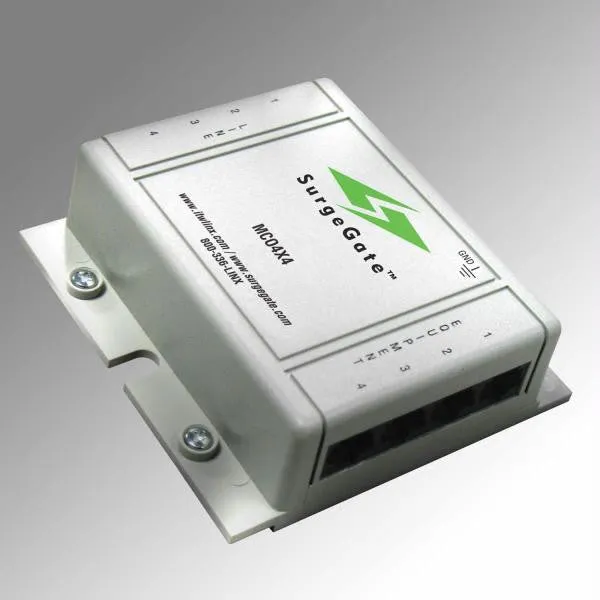

• Protects Four Lines Rj-11 45 Connectors
• analog Station Set And Central Office Line Protector
• Protects Up To 2wires (1pair) Per Jack. Using Rj11/45 Connectors (pins 4 5)
• Autoresetting Technology: Ptc Resistors Open When A Surge Occurs Protecting Your Equipment But Unlike Other Fuses The Ptcs Close Again Once The Surge Passes.
• Expandable Modular System
• Applications: Analog And Central Office Lines For Pbx Or Ksu
• Agency Approval: Ul 497a (secondary)
• Grounding Requirements: Uses Electrical Ac Ground
• Recommended Grounding Impedance: <0.5 Ohm
• Signal Perfect Circuitry
• Autoresetting Ptcs: 160 Ma (810 Ohms)
• Clamping Level: 260v
• Response Time: 15 Nanoseconds
• Capacitance: <50pf
• Suppression Modes: Metallic And Longitudinal
• Wires Protected: 2wires (1pair) Per Jack (pins 4 5)
• Termination Type: Rj11/45
• Brand: Itw Linx
