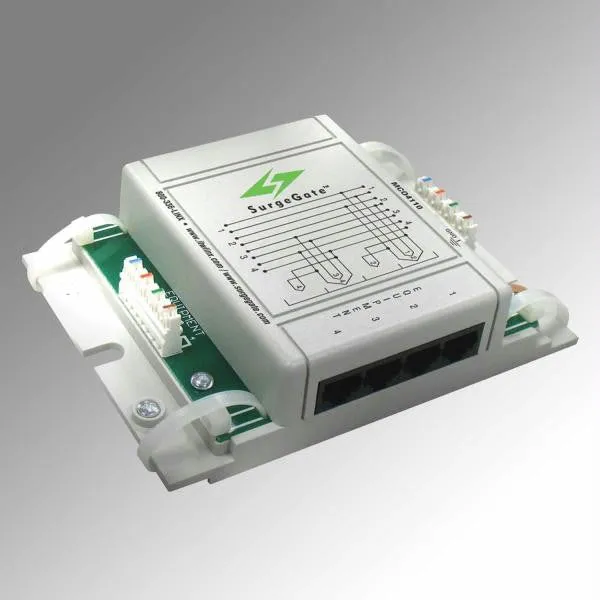

• Towermax Co4 110 Connectors
• analog Station Set And Central Office Line Protector
• Protects Up To 8wires (4pairs) Using 110 Punchdown Block On The Input And 110 Punchdown Block Or 4 Rj11 Or 2 Rj45 On Output.
• Autoresetting Technology: Ptc Resistors Open When A Surge Occurs Protecting Your Equipment But Unlike Other Fuses The Ptcs Close Again Once The Surge Passes.
• Expandable Modular System
• Applications: Analog And Central Office Lines For Pbx Or Ksu
• Agency Approval: Ul 497a (secondary)
• Grounding Requirements: Uses Electrical Ac Ground
• Recommended Grounding Impedance: <0.5ohm
• Signal Perfect Circuitry
• Autoresetting Ptcs: 160 Ma (810 Ohms)
• Clamping Level: 260v
• Response Time: 15 Nanoseconds
• Capacitance: <50pf
• Suppression Modes: Metallic And Longitudinal
• Wires Protected: 50wires (25pairs)
• Termination Type: 110 Punchdown Input Rj11/rj45 Or 110 Punchdown Output
• Brand: Itw Linx
